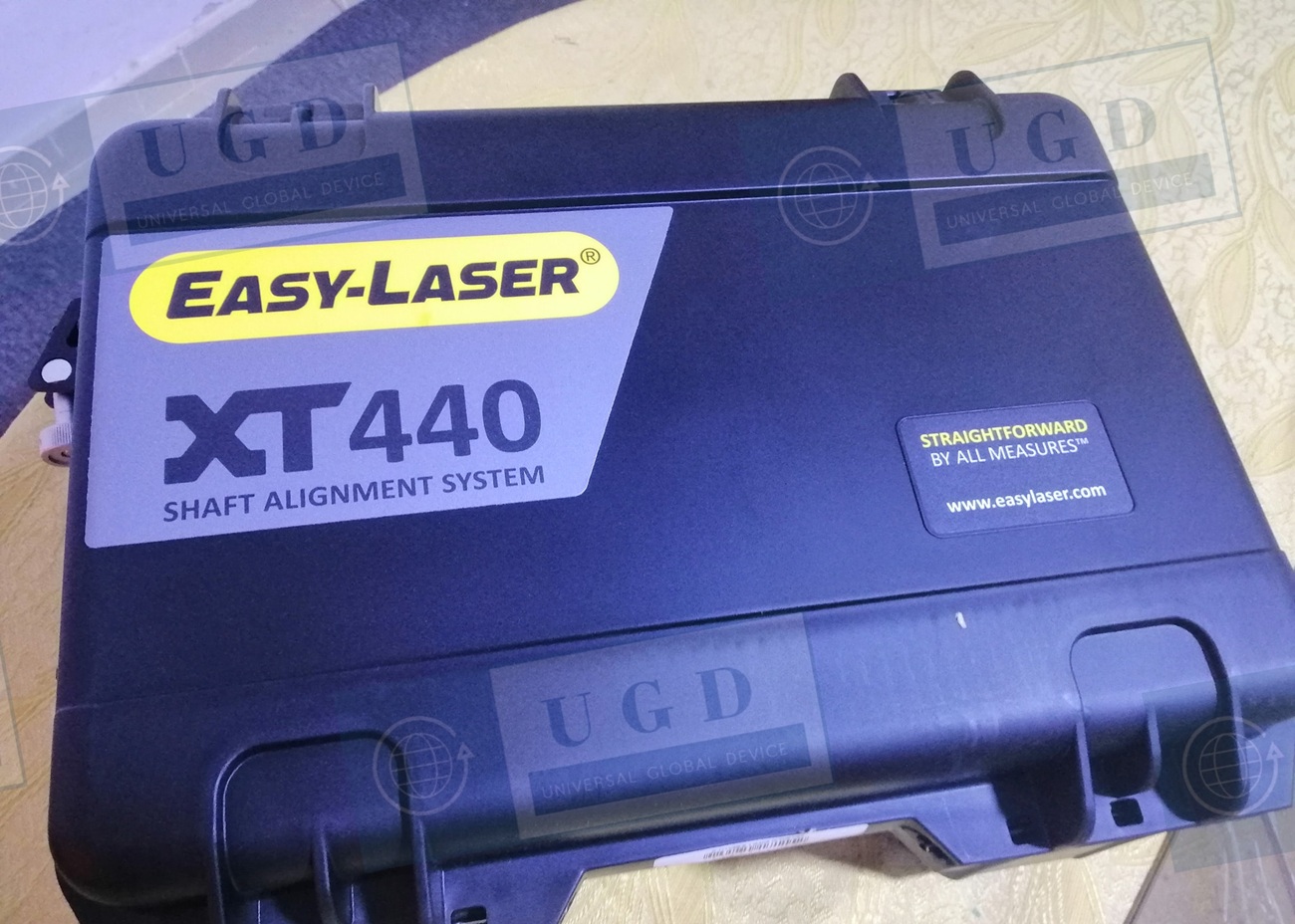

Easy-Laser XT440 Shaft Alignment

Description

Easy-Laser XT440 Shaft Alignment

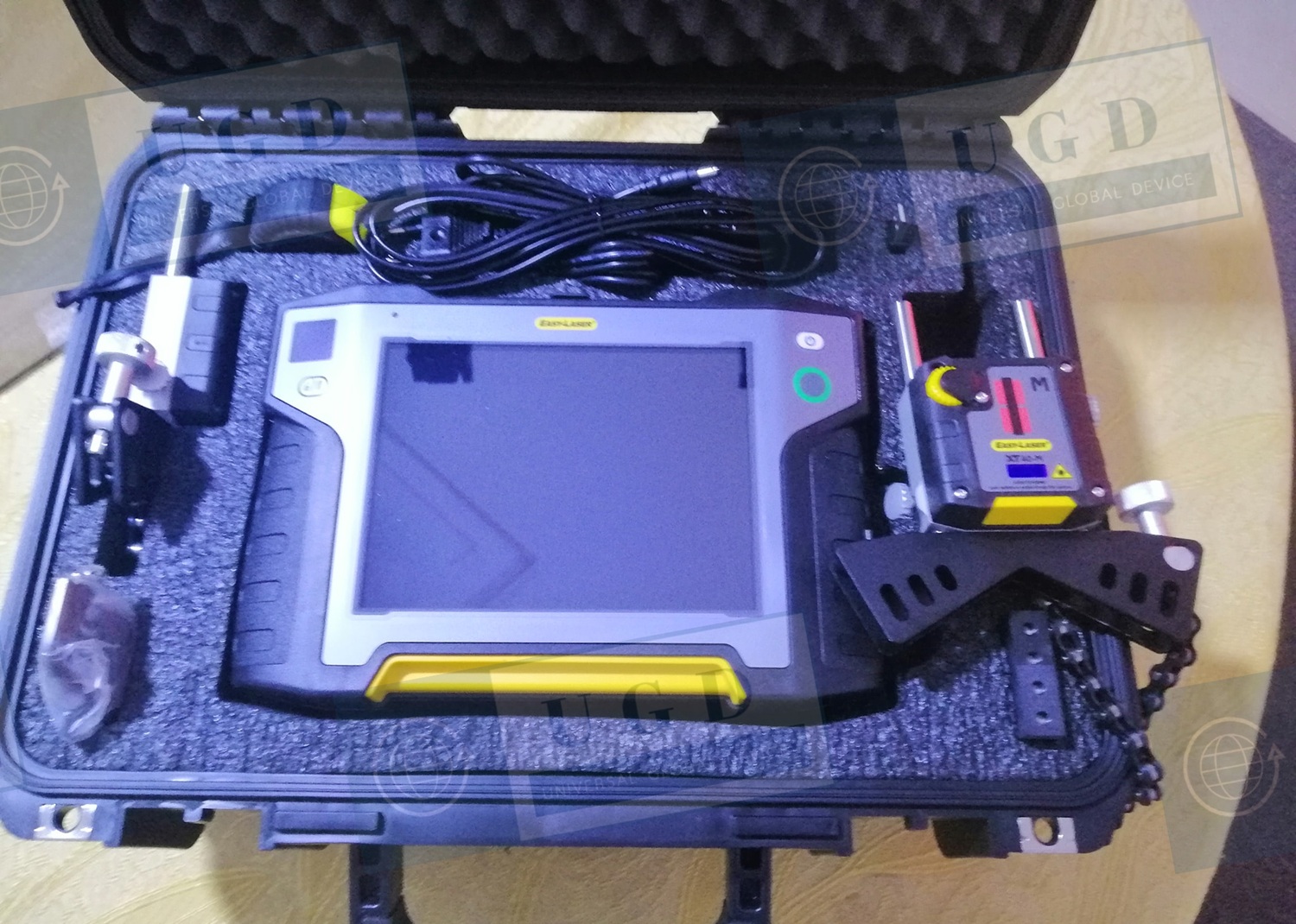

Easy-Laser XT440 Shaft Alignment is the first of our Generation XT alignment systems. This allows you to display alignment data on a multitude of different handheld devices, including our own Easy-Laser XT ergonomic and rugged, IP66/67 approved shockproof alignment computer, including a built-in 13MP camera for documentation and HDMI video output. The laser line measuring units are also rugged and IP66/67-approved, featuring Bluetooth wireless technology.

The Easy-Laser XT Alignment application runs on both Apple iOS and Android tablets and smartphones. All functions are available in a single App with programs for alignment of both horizontal and vertical machines. Also included are functions for soft foot check, thermal growth compensation, and tolerance check.

Features

Dual 1 axis line laser on the Easy-Laser XT440 system for max distance up to 10 meters
9-12-3 and EasyTurn measurement methods
Digital Belt Alignment Tool XT190 Integration
Vibrometer Tool XT280 Integration
Optional Thermal Camera on XT12 display
The free XT Alignment app runs on Android and iOS devices with all functions included
Shaft Diameters up to 250mm and with optional extension chains up to 450mm

Top Features:

Alignment data can be stored in the XT application, USB drive, or emailed directly as a PDF report including measurement data and color images.
An intuitive user interface guides you through the measurement process
Purchase multiple systems with various capabilities, train just once! The training costs are minimized significantly since the App interface and basic functionality is identical across all systems (XT660 / XT770 / XT190).
Easy-Laser PLUS cloud data transfer

Options:

System with or without alignment computer
On-board IR camera option for XT display unit —measure heat profiles before and after alignment!
Vibration monitoring and analysis with optional Easy-Laser® XT280 VIBROMETER
Precision machine base leveling with optional Easy-Laser® XT290
Align belt and chain drives with optional Easy-Laser® XT190 BTA hardware

Unique documentation possibilities

From the app, you can easily create and share a PDF report containing all measurement data and images. If you use the XT display unit it has a built-in 13MP camera. The XT display unit can also be equipped with an IR camera which allows you to add a thermal image of the machine before and after alignment.
