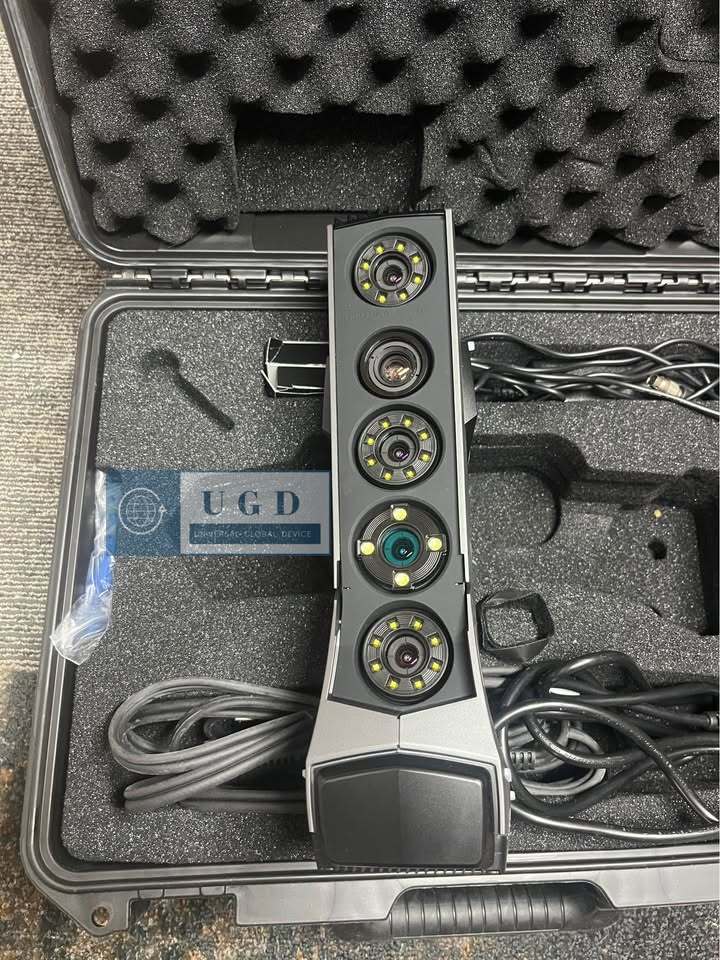

Creaform Go!Scan Spark Handheld 3D Scanner

Creaform Go!Scan Spark Handheld 3D Scanner

Creaform Go!Scan Spark Handheld 3D Scanner fastest, user-friendly handheld 3D scanner for reverse engineering and product design. A powerful tool during the product development phase, the Go!SCAN 3D quickly measures any complex surface making it possible to “get it right” the first time.

With its seamless integration to your 3D modeling software and your product life cycle management workflow, it will greatly improve product development, foster innovation and shorten time to market.

Designed to scan any object without need for a set-up, it offers flawless texture and geometry acquisition as well as impressive details in a rich color palette. Just go…and scan.

Fast scanning
Lightweight
Extremely portable
Easy to use
Dynamic referencing
Instant feedback
Color support

Color Acquisition

Capture vibrant color 3D scan data with up to 200 DPI. The camera’s automatic shutter speed allows you to scan multi-color parts with ease and export the texture at any time in various formats. If you don’t want to capture texture, simply check the box to turn it off.

Accuracy & Resolution

The Go!SCAN Spark has a surface accuracy of (.002”). The volumetric accuracy of the scanner is (.0018”) per running foot which determines how close your scan is to the part in the X, Y, and Z axis. The resolution of the scanner is (.0039”).

Portable

Weighing in at just 2.7 lbs., this scanner and its additional hardware is travel friendly and is compact enough that it can fit into a standard size briefcase.

Level of Details & Scan Quality

The high resolution and level of details of the Go!SCAN 3D provides astounding scan quality. Featuring full support of color, it creates spectacular results!

Dynamic 3D’s commitment to North American design and manufacturing underscores a dedication to quality and local industry support. This regional production ensures each scanner is a product of high-quality materials and skilled workmanship.

Accuracy up to 0.050 mm
Volumetric Accuracy 0.050 mm + 0.150 mm/m
Resolution 0.100 mm
Up to 1,500,000 measurements/s
2.7 lbs
Full color support
White light scanning

High resolution for intricate details
