Name: Fluke Networks DSX2-5000 Cable Analyzer
SKU: 2894
Availability: InStock

Fluke Networks DSX2-5000 Cable Analyzer

$4,660.00

The DSX2-5000 CableAnalyzer copper test solution enables testing and certification of twisted pair cabling for up to 10 Gigabit Ethernet deployments and will handle any cabling system whether it is a Cat 5e, 6, 6A or Class FA. Certifying a cable is one part of a process that starts with system design and ends with system acceptance. The faster that process goes, the more profitable you’ll be. Unfortunately, there are a lot of things that slow the process down – setting up the tester incorrectly, testing to the wrong limits, waiting for skilled technicians to analyze and troubleshoot failures, misinterpretation of results, and producing test reports that customers can not understand.

Category: Network Cable Tester Tag: Fluke

Description
Reviews (0)

Description

Fluke Networks DSX2-5000 Cable Analyzer

Fluke Networks DSX2-5000 Cable Analyzer works on cables running EtherNet/IP, Profnet, ModBus TCP, EtherCAT, plus other protocols. It offers touchscreen project management, TIA Level IIIe accuracy, and advanced troubleshooting, all with integrated Wi-Fi and 8-hour battery life.

Product Features:

The DSX2-5000 CableAnalyzer is ideal for every step of the copper certification process
Included WiFi adapter makes it easy to connect the Versiv 2 Mainframe to Linkware Live
Versiv 2 enables users to accomplish more than ever with a cable tester, by accelerating every step of the testing process
Proj-X management system eases tasks from initial set-up of a job to system acceptance. It eliminates redundant steps and ensures that all tests are completed correctly the first time and every time
Taptive user interface puts advanced data analysis and easy set-up and operation at the fingertips of technicians of all skill levels
LinkWare management software provides unmatched analysis of test results and professional test reports
The DSX reduces the time required to fix cabling faults with Dedicated Diagnostics, a simple test that locates the problem
Built-in Alien Crosstalk testing capability

Performance:

Ten second Cat 6A test time contributes to the fastest way to gain certification
Graphically displays the source of failures including crosstalk and distance to shield faults for faster troubleshooting
Manage up to 12,000 test results with full graphics
Capacitive touchscreen allows quick tester setup with easily selectable cable types, standards, and testing parameters
1 billion links reported on LinkWare management software

Standards:

Compliant with proposed ISO (IEC WG9 Standard IEC61935-1) Level V accuracy requirements to 1000 MHz
Supports the complete suite of Resistance Unbalance standards needed for Power over Ethernet (PoE) – IEC61935-1 & 11801-1-4, IEEE 802.3af, IEEE 802.3at, ANSI/TIA/EIA-568-C.2
Next-generation balance drafts – IEEE 802.3, TIA TR42.7

WITH BUILT IN WIFI

The DSX2-5000 accelerates every step of the copper certification process.

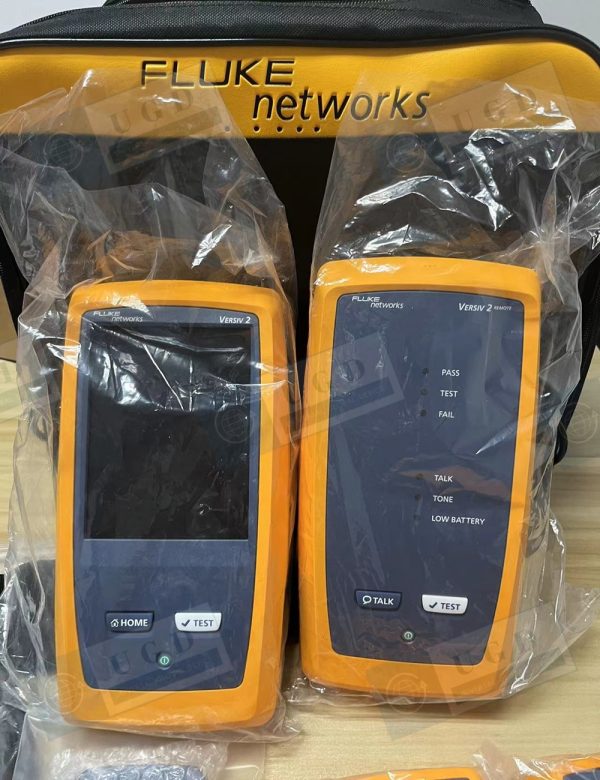

Includes 1 Versiv Mainframe & Remote, (2) DSX-5000 CableAnalyzer Modules.
For full product details see Part Number and Specification sections.
