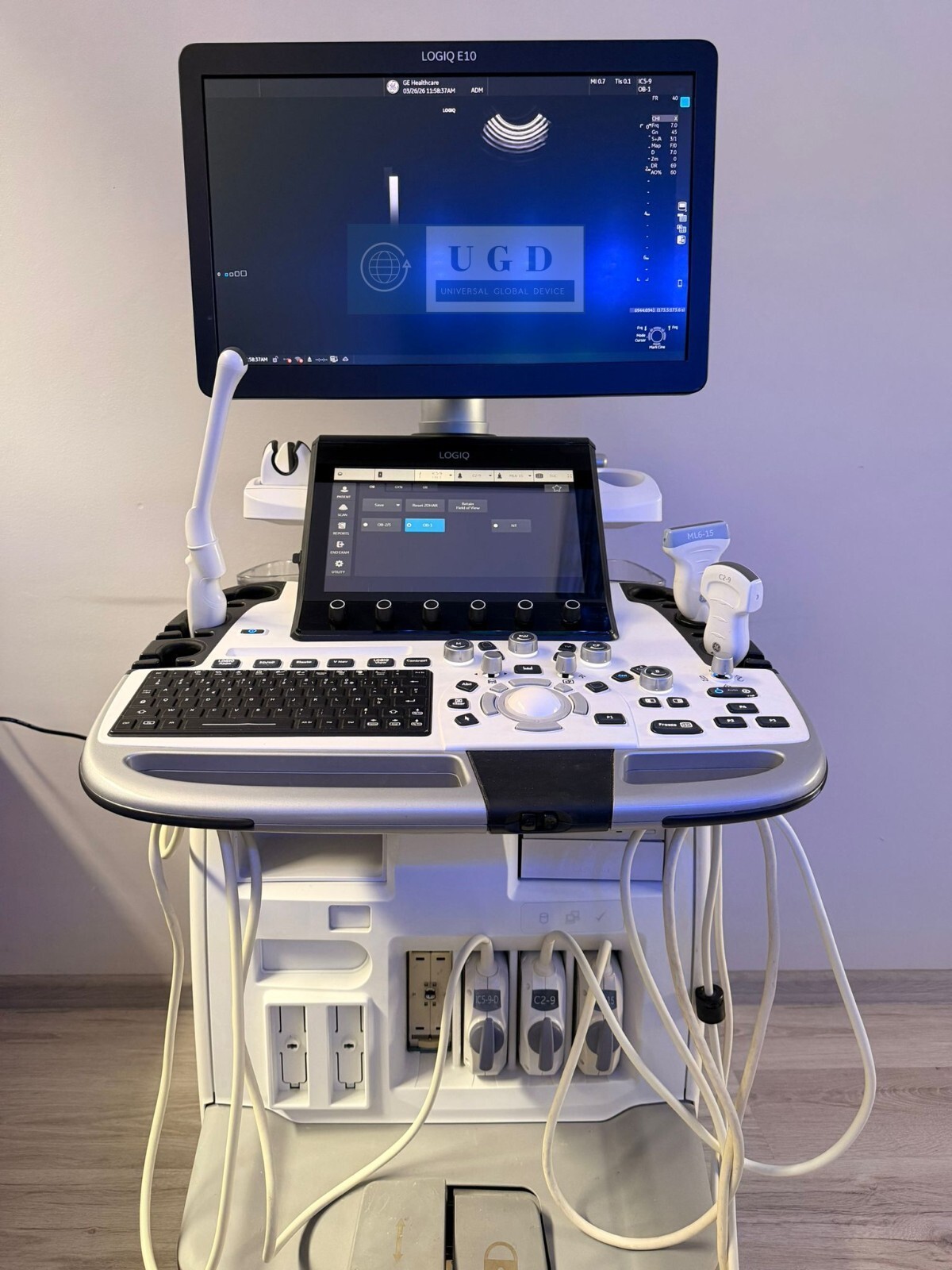

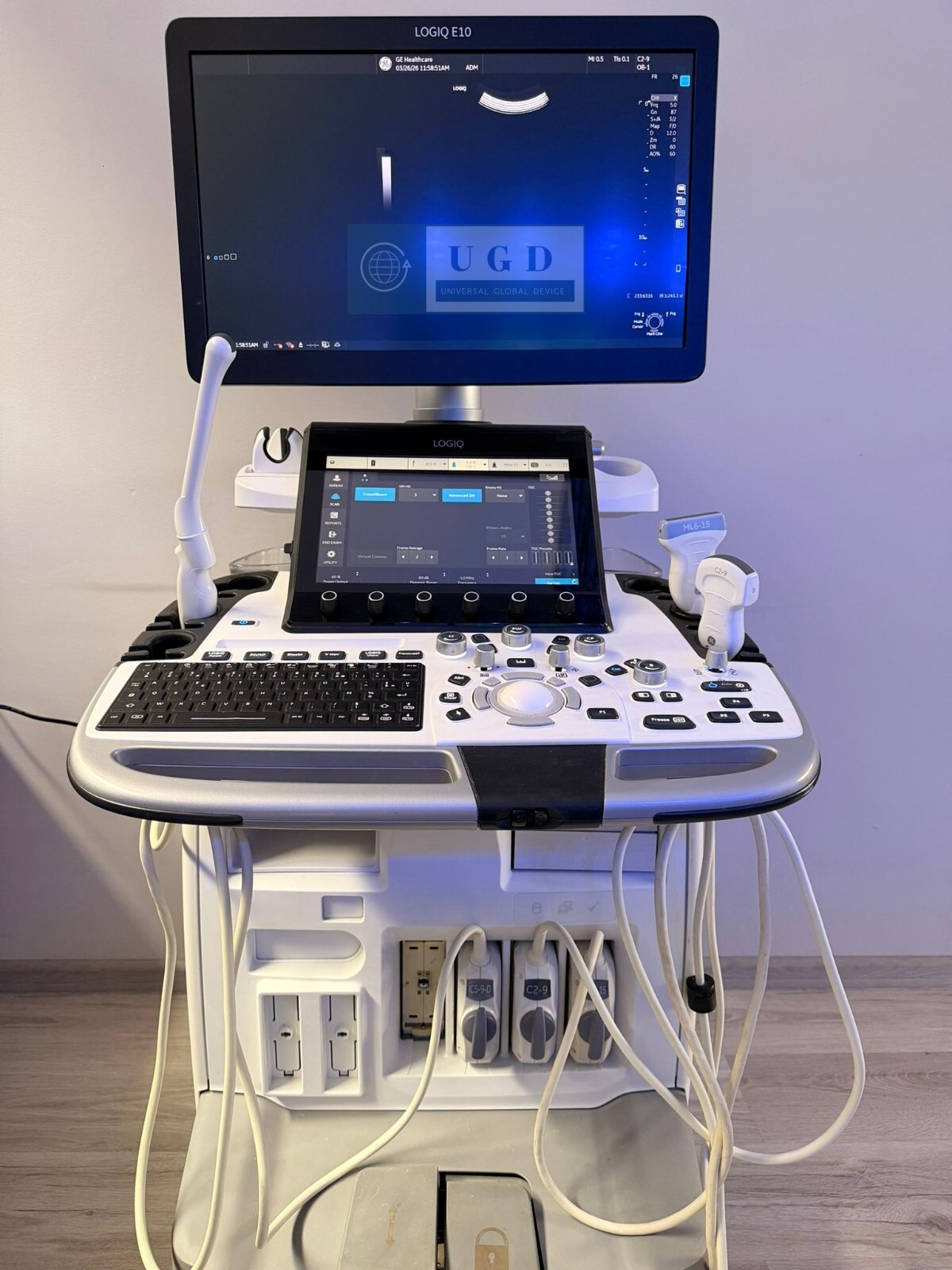

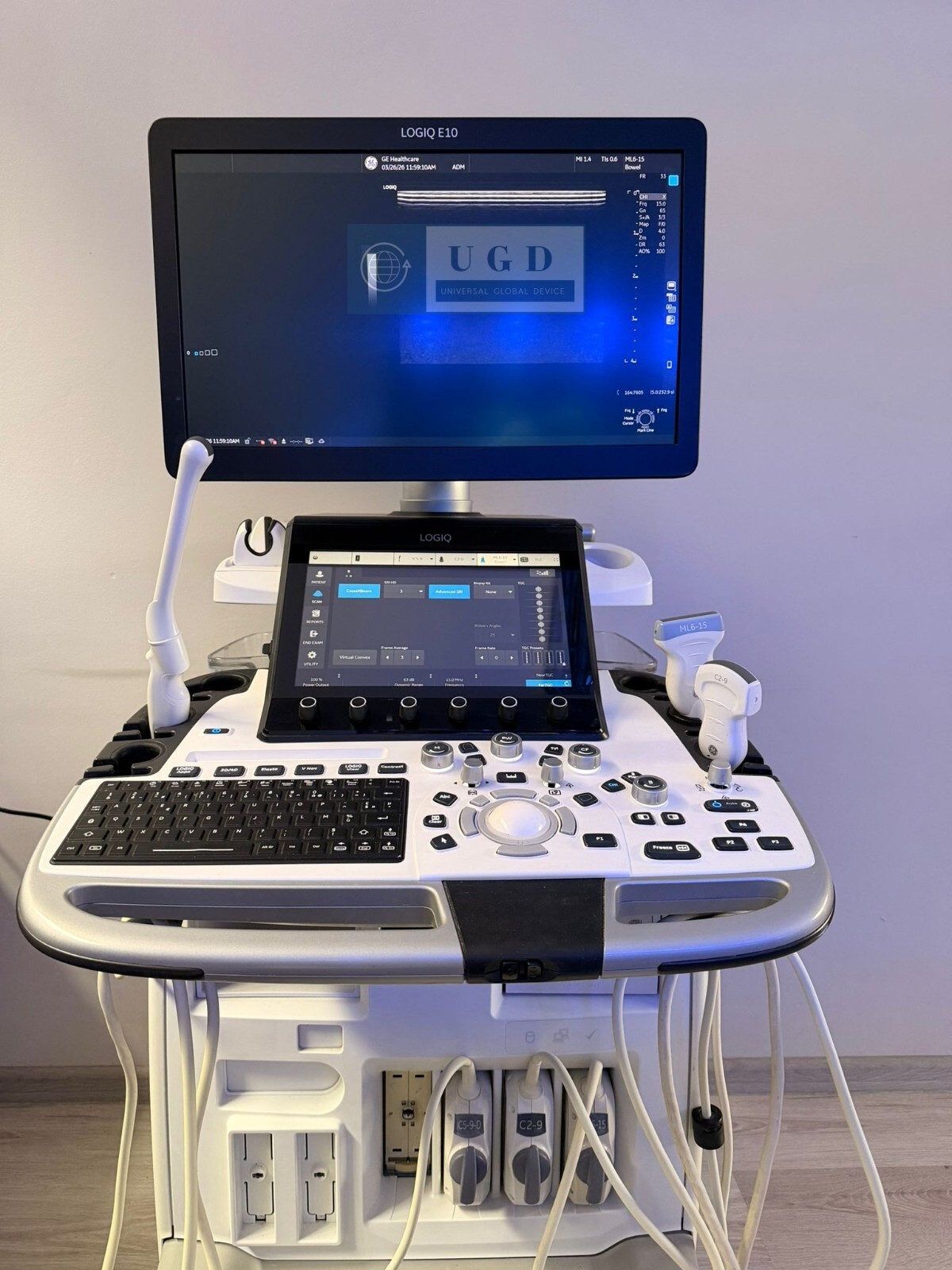

GE Logiq E10 Ultrasound System

GE Logiq E10 Ultrasound System

GE Logiq E10 Ultrasound System is an ultrasound system made to be used in practically any medical environment. It is made with advanced, next-generation technology to ensure the best kind of care in a variety of clinical scenarios. This ultrasound machine features contrast enhanced ultrasound to help ensure accurate lesion detection and characterization. New AI-based tools and a high processing power allow for extraordinary image quality. With the Logiq E10, you can diagnose patients of all ages and sizes with confidence.

Features:

AI-based tools such as OB Measurement Assistant and Auto Doppler Assistant to help streamline workflow
Auto Doppler Assistant analyzes images, then automatically adjusts the color box and angle
Can be operated remotely
SonoDefense cyber threat protection for patient data
2D Shear Wave Elastography provides color coded elastograms and quantifies tissue elasticity
Ultrasound-Guided Attenuation Parameter aids in early identification and monitoring for patients with NAFLD, NASH, or ASH
Contrast Micro Vascular Imaging offers high sensitivity and spatial revolution
Radiantflow provides a near-3D look when visualizing blood flow in tiny vessels
OmniView “any-plane function” for 3D and 4D data

Touch screen,

12.1-inch high-resolution color touchscreen,
Interactive, dynamic software menu,
Brightness adjustment,
Configurable interface layout,

Display monitor:

22-inch widescreen high-resolution OLED display,
Resolution: 1920 × 1080,
Position adjustment (rotation and shift horizontally and vertically),
Viewing angle: 89° in all directions,
Anti-reflective coating,

Characteristics:

Foldable construction with lock for transport,
4 active head ports,
Built-in HDD (1 TB) and SSD (128 GB),
Built-in DVD drive,
Integrated speakers with subwoofer,
Wheel locking and rotation system,
Cable management,
Handles on the front and back,

Standard system functions:

Advanced user interface with high-resolution touchscreen,
Automatic image optimization,
CrossXBeam™,
Speckle Reduction Imaging (SRI-HD),
Coded harmonic imaging,
Patient database,
Support for USB printers and HDMI output,

Applications:

Liver
Radiology
Breast
Interventional Radiology
MSK
Pediatrics
Vascular
Cardiovascular
OB/GYN

The unit comes with four probes.

TVS
Convex
Linear
Tee Probe
The unit comes with four probes.
TVS
Convex
Linear
Tee Probe
