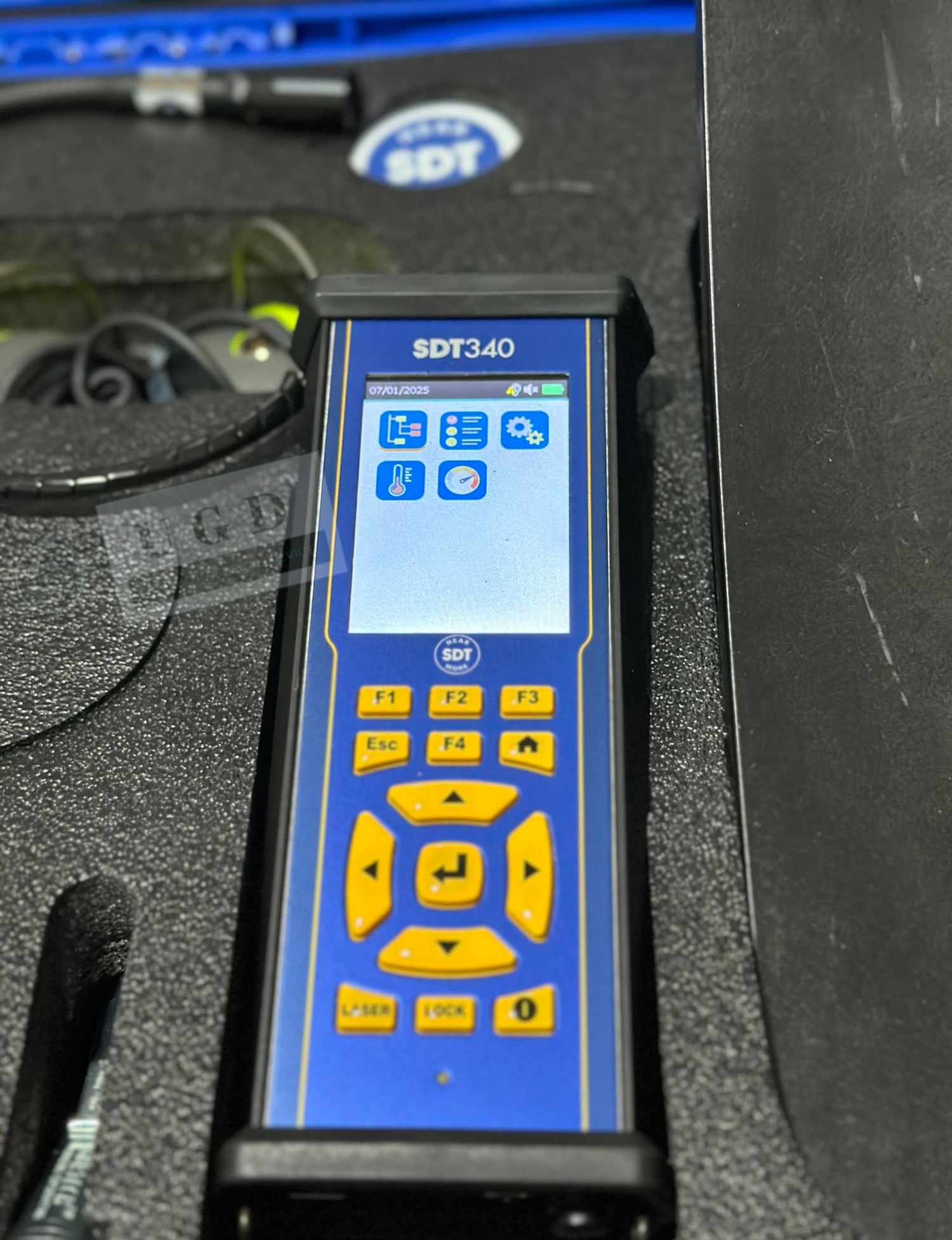

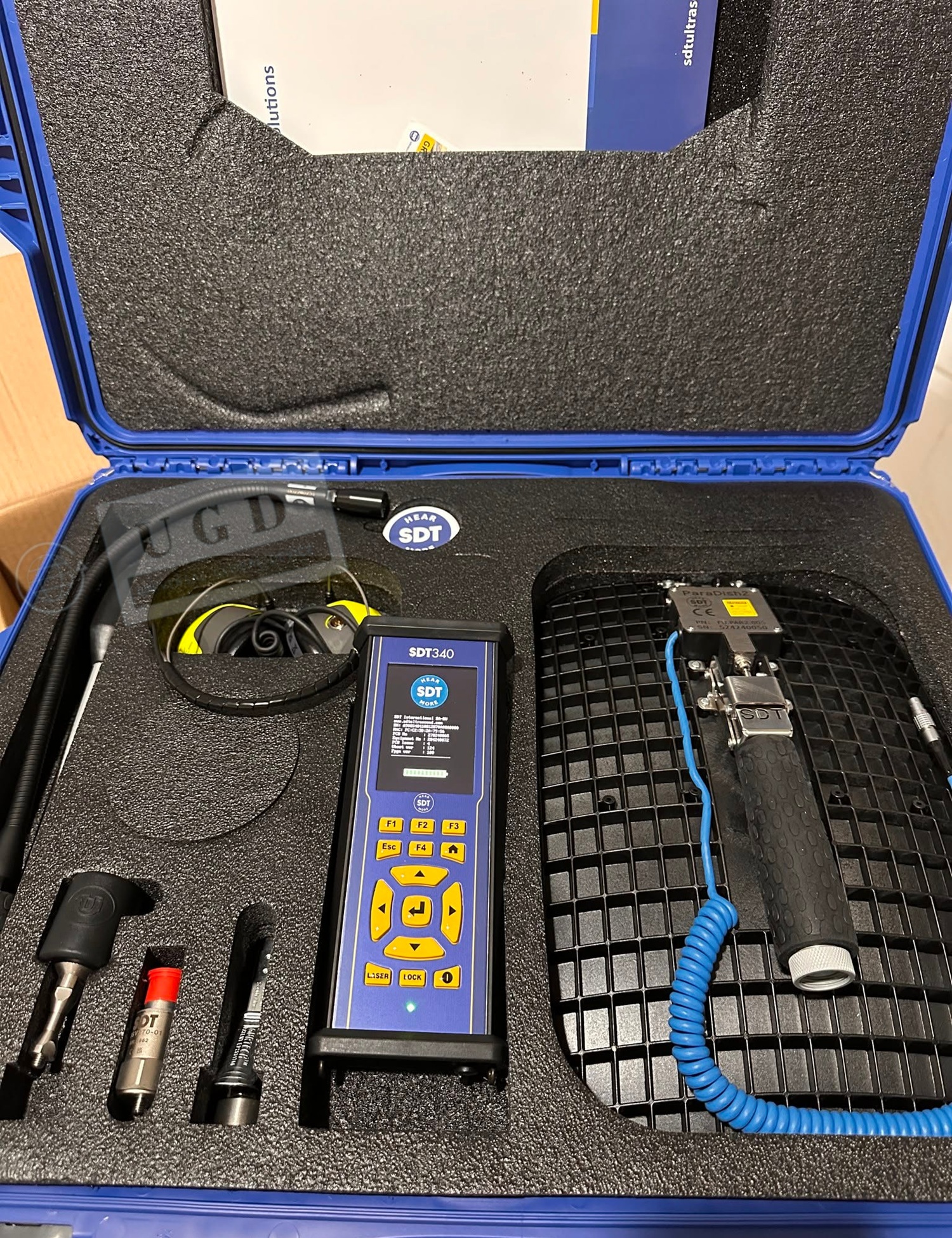

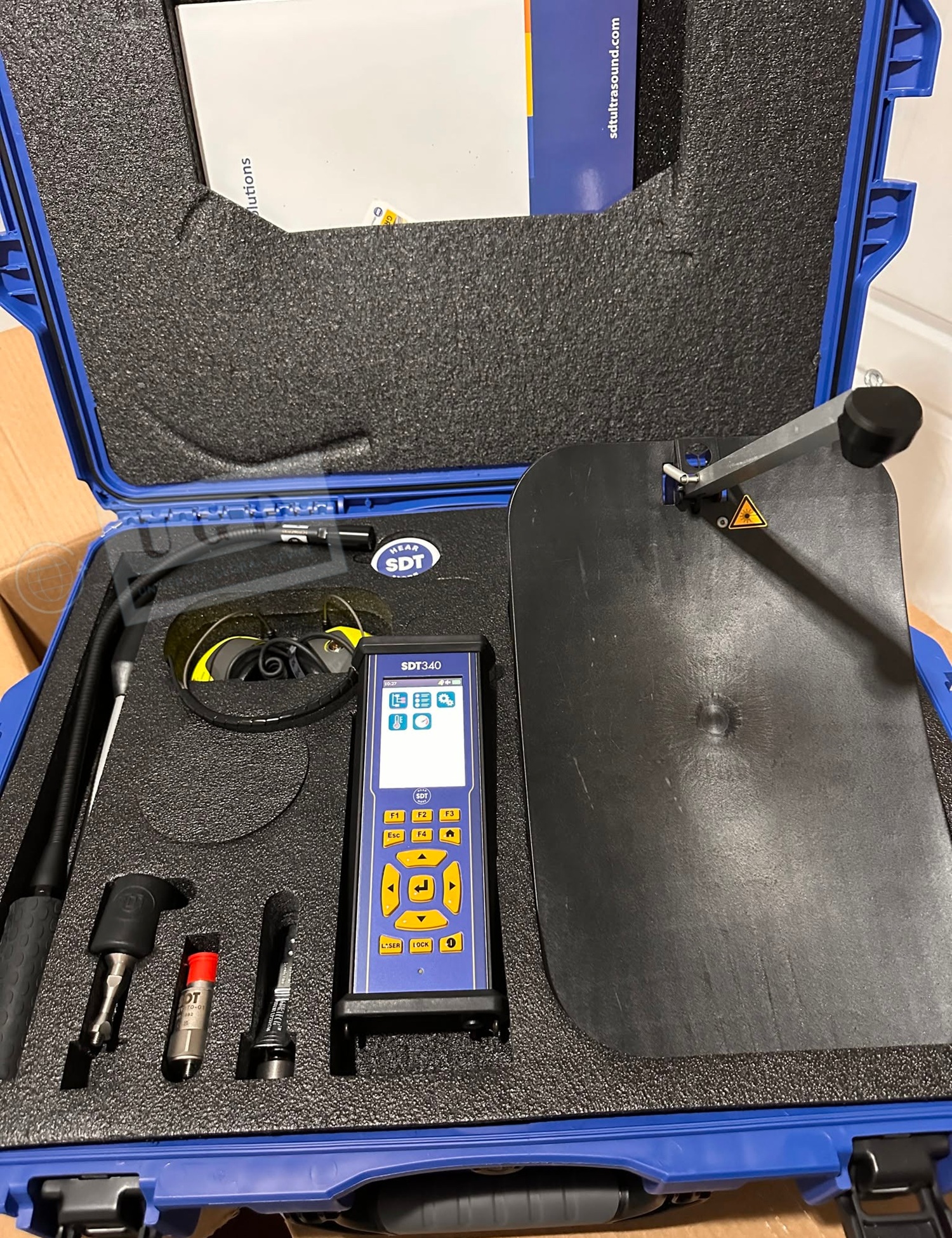

SDT340 Ultrasound and Vibration System

SDT340 Ultrasound and Vibration System

SDT340 Ultrasound and Vibration System is a state-of-the-art ultrasound condition monitoring system designed for comprehensive asset management. This advanced device provides precise detection of mechanical, electrical, and fluid-related issues through ultrasound technology. With its user friendly interface and robust features, the SDT 340 helps maintenance teams identify potential problems early, enhancing reliability and reducing unplanned downtime. Ideal for diverse industrial applications, the SDT 340 offers reliable, real-time insights to support proactive maintenance and improve overall equipment performance.

Top Features:

Enhance productivity in the field with on-screen time signal, spectrum, split-screen view, and icon navigation.
The color display gives you a crystal clear view in the darkest conditions.
Experience enhanced impact detection with focUS Mode. See defects others simply cannot.
Record time waveform data up to 10 minutes in duration with enhanced signal data.
Pan and expand your time signal or spectrum and list the highest values to improve in-field diagnosis.
Recall historical data for trending and alarming in-the-field acquisition.
Cut the cord with SDT340’s high definition optional Bluetooth headphones.

Key Benefits of the SDT 340:

Dual Channel Input: Connect ultrasound and vibration sensors at the same time for a complete mechanical health check.
Intuitive Interface: The icon-driven menu is easy to navigate, even for those who are new to ultrasound technology.
Bluetooth Integration: Use wireless headphones to listen to your machines safely, without cables getting caught in moving parts.
UAS3 Software: It works perfectly with SDT’s data management software to track the history of your machines and predict failures months in advance.

Non-intrusive and safe diagnostics

In light of this threat, electrical inspection using ultrasound with the SDT340 is the safest and most effective early detection tool available. Healthy electrical equipment is acoustically silent; however, any PD generates a localized, directional acoustic signal in the range of 20 kHz to 50 kHz. The SDT340, equipped with its high-performance air-coupled sensor, picks up this distinct hum before it causes a significant temperature rise or visible damage.

Applications in your plant.

Bearing Monitoring– Monitor and maintain the health of your bearings.
Leak Detection– Apply the SDT340 to your air, steam and gas leak detection efforts, and save up to 40% on energy costs. Convert the measurement to flow rates with the SDT LEAKReporter, a free App for iOS and Android. SDT LEAKReporter generates reports and archives your leak data to the cloud.
Electrical Systems– Detect and record electrical faults with ultrasound technology.
Steam Traps– Ensure that you’re maintaining a clean steam system for maximum efficiency at your industrial site.
Valve Monitoring– Detect valve defects and identify failures.
Condition Monitoring– Protect your plant against downtime with efficient and accurate condition monitoring through ultrasound analysis.
Pump Cavitation has a destructive effect on pump’s internal components. Use the SDT340 to isolate pump vanes and listen for small air pocket explosions.
Marine Applications– Protect the integrity of your cargo and sealed spaces.
Tank Test – Use your SDT340 to test underground storage tanks.
