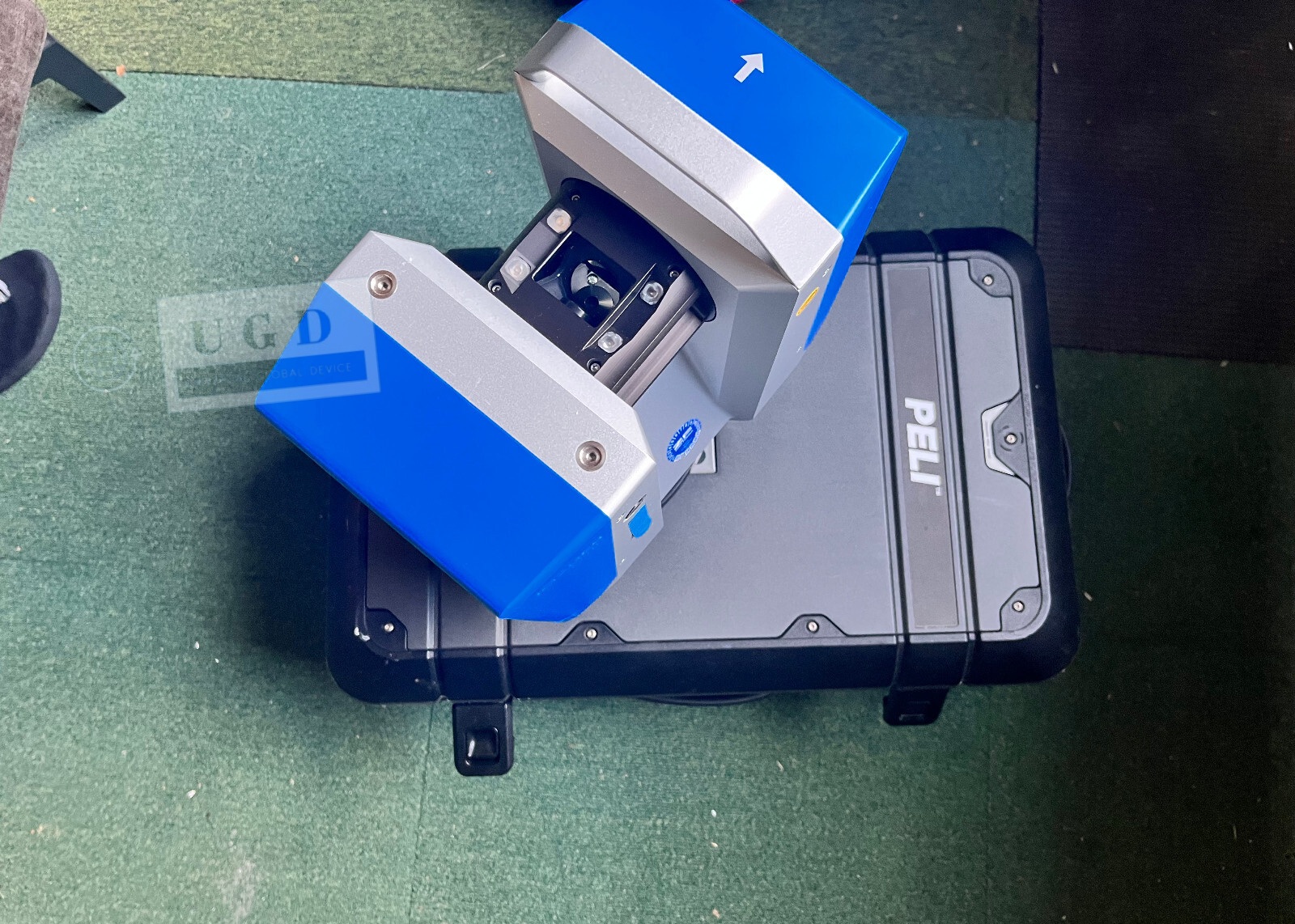

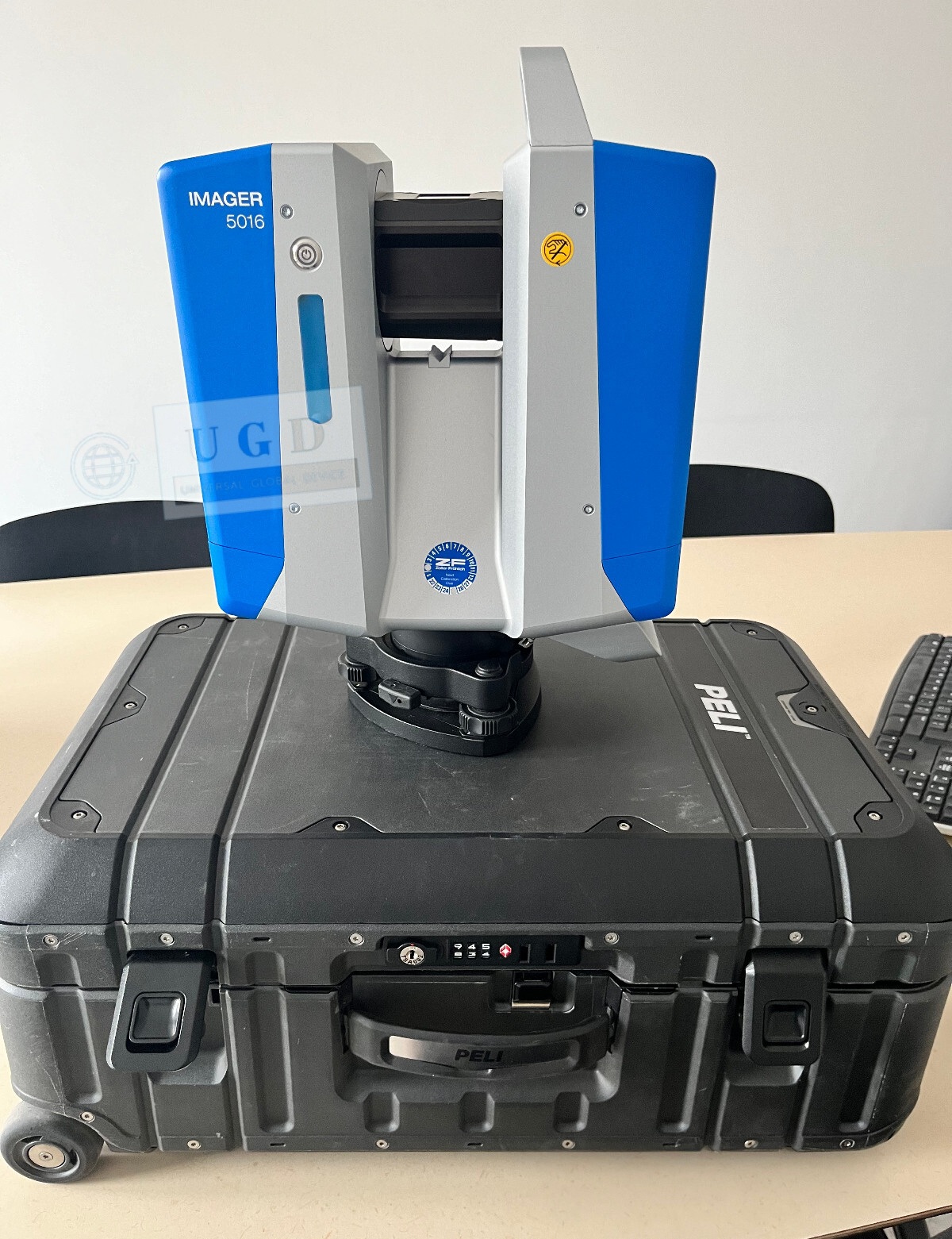

Z+F Imager 5016 3D Laser Scanner

Z+F Imager 5016 3D Laser Scanner

Z+F Imager 5016 3D Laser Scanner is smaller and lighter, with unparalleled accuracy and reliability for all your indoor and outdoor scanning needs. The Blue Workflow enables live, on-site registration of your data to save time and increase productivity like never before.

Universal mounting

The Z+F FlexScan 22 is highly versatile and can be easily used with various support systems. This SLAM platform can be attached to backpacks, tripod carts, fixed tripods, and robots. Thanks to the Quick Mount System, switching between support systems can be done in just a few minutes. Furthermore, data captured with different support systems can be effortlessly registered in Z+F LaserControl.

Camera system

The Z+F FlexScan 22 is equipped with a panoramic camera to color map the mobile scan data.

Easy data collection

Static and mobile data is synchronized locally on an internal hard drive and also on a removable medium for backup and processing.

 Blue workflow

The data is seamlessly integrated into the blue workflow and Z+F LaserControl or exported to standard formats for third-party software.

Measurement accuracy for the highest demands

The Z+F FlexScan 22 benefits from the very high quality and range of the static high-end scanner Z+F IMAGER 5016 and achieves an accuracy of up to 2.5 mm in the SLAM result. Each profile scanned with the Z+F FlexScan 22 has 10,000 points, which ensure finest details in the 3D model. For very high accuracy requirements, the SLAM data can be enhanced by adding control points or survey controls.

Dimensions

Usable in smallest spaces
Carry-on luggage size

Weight

Laser scanner without battery: ≤ 6,5 kg (14.3 lbs)
Laser scanner with 2 batteries: ≤ 7,5 kg (16.5 lbs)
Ideal weight for stable setup
Makes field work easier

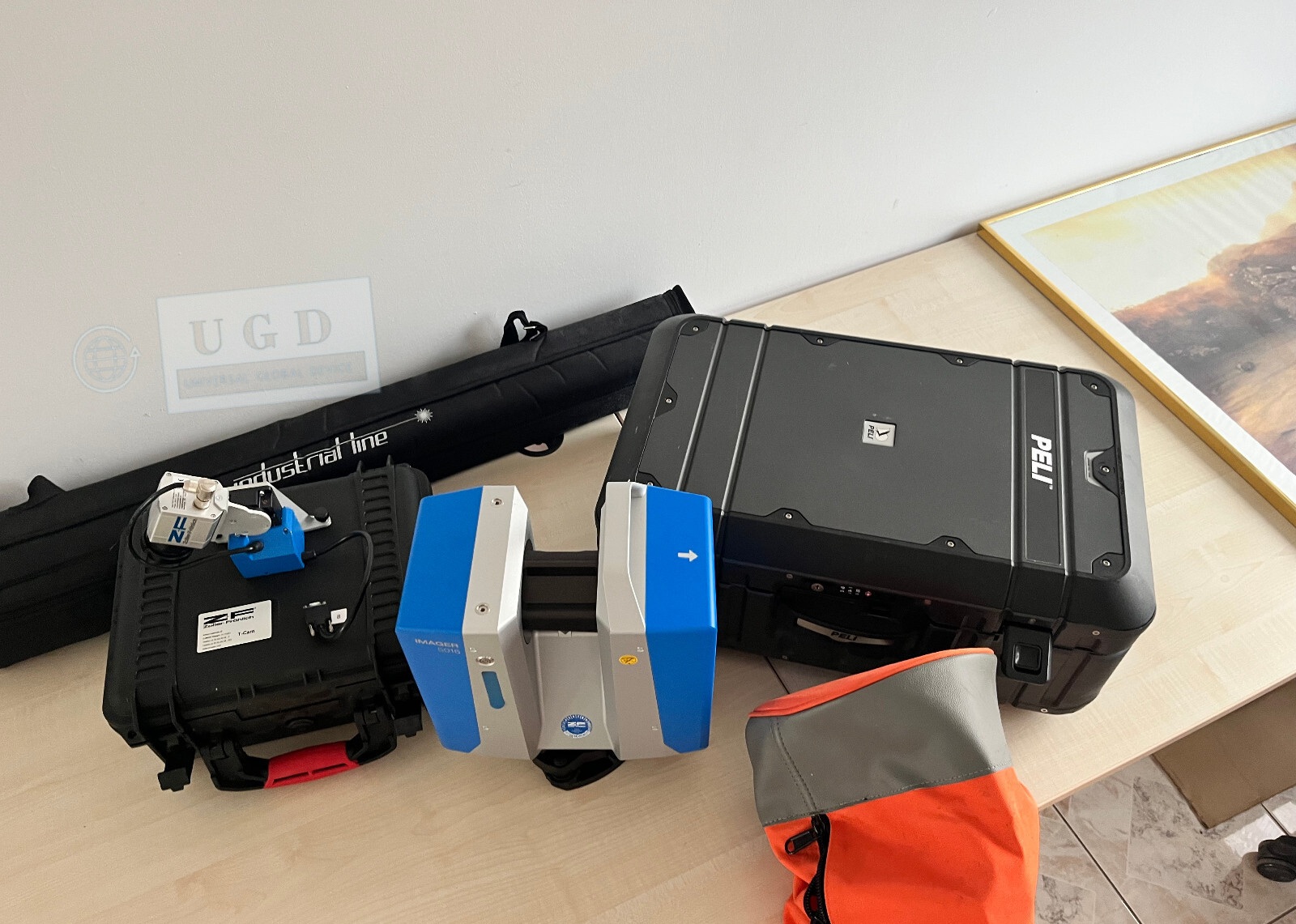

Set includes:

Z+F IMAGER 5016 + transport case Pelicase
Aluminium tripod
Professional Targets including magnetic holders
Auto Target
T-CAM – thermography camera
Laser Control Professional Plus software lifetime license
Laser Control Scantra (Plug In) software lifetime license
Calibration
